Sale!

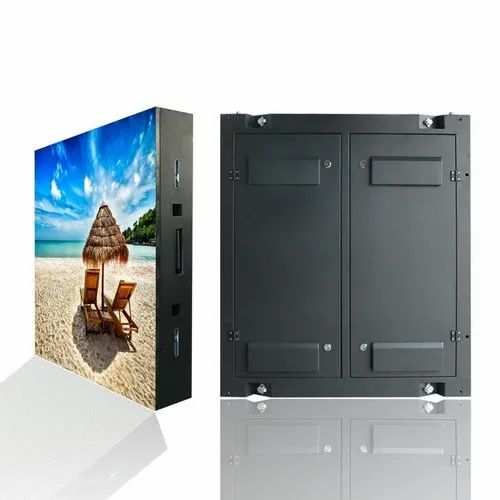

จอ LED กลางแจ้ง ภายนอกอาคาร P4 แบบติดตั้งถาวร ขนาด 960×960มม./คาบิเนต

จอ LED ภายนอก P4 แบบติดตั้งถาวร ขนาด 960×960 มม.

Name: จอ LED ภายนอก P4 แบบติดตั้งถาวร ขนาด 960x960 มม.
SKU: LSOU-FI-P4-960X960MM
Price: 39200.00 THB
Availability: InStock

฿39,200.00

จอ LED กลางแจ้ง ภายนอกอาคาร P4 แบบติดตั้งถาวร ขนาด 960×960มม./คาบิเนต

ราคา 39200 บาท / คาบิเนต

SKU: LSOU-FI-P4-960X960MM Category: จอ LED outdoor

Description

จอ LED กลางแจ้ง ภายนอกอาคาร P4 แบบติดตั้งถาวร ขนาด 960×960มม./คาบิเนต

P4 Outdoor SMD 1/4 Scan LED Display 960×960mm

LED Lamp
Type	SMD3535
Arrangement	1R1G1B
Brand	Epistar / Kinglight / Nationstar lamp
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch	10mm
Module Size	320×160mm
Module Resolution	32×16=512(Dots)
Module Weight	0.5kg
LED Cabinet
Pixel Density	10000 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	160×160=25600(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	960×960×175mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	3×6=18(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Steel
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	40kg/PCS
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>5000cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	120(Horizontal), 120(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	13m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	1000 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	300 w/sqm
Operating Temp/Humidity	-15^oC~50^oC,15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-30^oC~55^oC,15%~85%RH
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Constant driving 1/4 Scan, Combined diver board
Heat Dissipation	Screen size >30sqm / Temperature >40^oC, need matched air conditioner cooling. only for Outdoor Normal Led Display
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio(HSTV-NOVA)
Communication Type	Net cable; 4G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB, RJ45, HDMI(Sold separately)

Large Outdoor LED Advertising Display The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.
			LED advertising display Pixel pitch : 10mm Pixel Configuration: SMD Brightness: over 4200cd/sqm Refresh Rate :over 1800Hz Drive Mode: 1/4 Scan Panel dimension: 960*960mm
Unique Design – Easy to Install & Transport The cabinet of PH10 LED Display Price features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It’s damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.
			IFP Conditions One: 1/10 Duty Cycle. Two: 0.1 msec Pulse Width.
Electrical / Optical characteristics One: Tolerance of measurement of Vf is ±0.05 V. Two: Luminous Intensity Measurement allowance is ± 10%. Three: Color Coordinates Measurement allowance is ± 1nm.
			Outstanding Outdoor Performance The displays are created for supreme quality outdoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in outdoor areas – in any environment conditions.
High Gray Scale – Better Picture The PH10 LED Display Price is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.
			High Brightness, Better Quality Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the PH10 LED Display Price ensures great quality pictures – making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
High IP Rating IP66 – Safe and Reliable The special waterproof design of PH10 LED Display Price protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.
			High Refresh Rate The PH10 LED Display Price is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.
Application The PH10 LED Display Price can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium, KTV, airport and at many more outdoor places.



			Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our “Quality Management, Continual Improvement, Excellent Service, Quick Response” are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Best After-sale Service If your PH10 LED Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.

จอ LED ภายนอก P4 แบบติดตั้งถาวร ขนาด 960×960 มม.

Large Outdoor LED Advertising Display

LED advertising display

Unique Design – Easy to Install & Transport

IFP Conditions

Electrical / Optical characteristics

Outstanding Outdoor Performance

High Gray Scale – Better Picture

High Brightness, Better Quality

High IP Rating IP66 – Safe and Reliable

High Refresh Rate

Application

Our Company Building

Best Quality Guaranteed

Best After-sale Service

Fastest Delivery and Best Online Services
